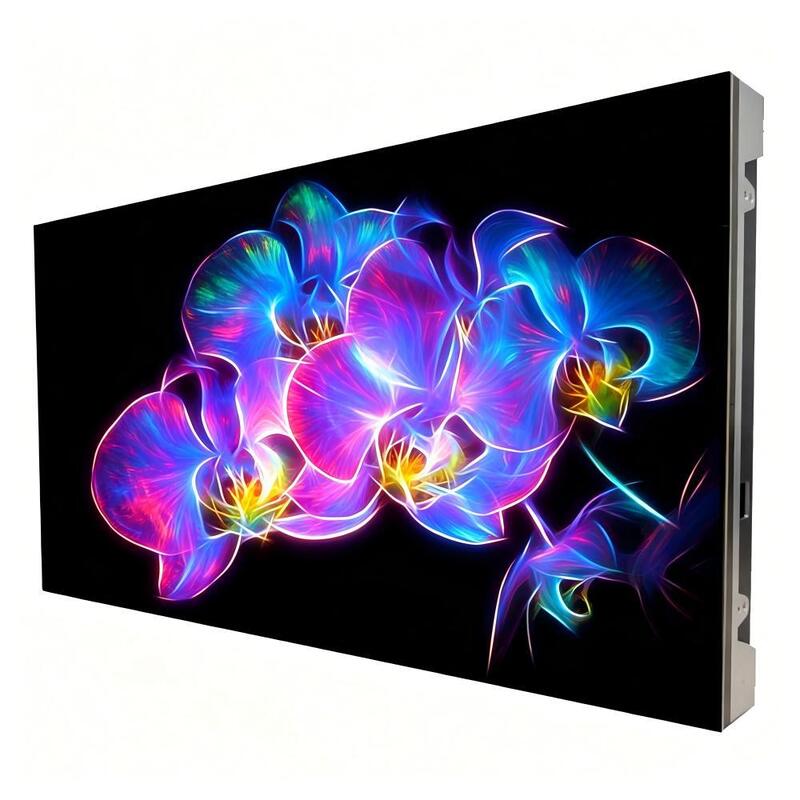

8k Small Pixel Led Video Wall Indoor COB LED Display Screen

What is a COB LED Display?

COB LED display stands for “Chip-on-Board” technology. It’s a new way of packaging LEDs, different from the traditional SMD method.
Instead of packaging each LED chip one by one, COB places bare LED chips directly onto the PCB board. These chips are fixed using conductive or non-conductive glue.
After placement, the chips are connected through wire bonding. Finally, everything is covered with protective resin to form a solid, flat light surface.
This method greatly reduces the space between pixels. It also improves durability, heat resistance, and display uniformity.
Compared to SMD, COB LED displays are more compact and less likely to be damaged. That’s why they’re popular in control rooms, studios, and retail displays where fine detail is essential.

How COB LED Displays Work

COB LED display uses a process where multiple LED chips are fixed directly onto a heat-conductive PCB. This setup removes the need for separate LED packaging. Each chip is bonded with wire, then covered with resin for protection. The sealed surface makes the screen smooth and resistant to damage.
A typical COB LED module has pixels on the front and IC driver chips on the back. These modules connect seamlessly to build displays in any size or shape. This design improves heat flow, so the screen runs cooler and lasts longer. The close chip layout also boosts brightness and reduces visual gaps.
COB LED technology blends chip, packaging, and display assembly in one. Its success depends on strong cooperation across the full supply chain.

COB Led screen Specification:

16:9 600×337.5mm HD LED Display

600×337.5mm Size Cabinet
3840HZ High Refresh Rate
Frontal Service Design for Easy Installation
High-end Indoor LED Display
CE, RoHS, FCC ,KC Approved
3 Year Warranty and 5% Spare Part

Cob Led Display Screen detail:

• Ultra HD Visual Effect

COB led screen have HD LED cabinet with 16:9 golden ratio, 3840HZ high refresh rate and fine pixel pitch, can be the best choice for high-end indoor LED screens.

• 16:9 Golden Ratio Design

The COB led screens cabinet size follows a 16:9 ratio, measuring 600*337.5mm. It boasts an excellent cabinet design, prized for its ultra-lightweight and ultra-thin features.

• Perfect Cabinet Design

Our COB LED screens cabinet design is perfect, featuring a beautiful appearance and user-friendly layout. It’s quick to install and easy to maintain, offering a visually pleasing experience that delights the eye.

• Ultra Lightweight

Experience flawless visuals from any angle with our ultra-lightweight design, weighing in at just 4.5kg. Our cob led display crafted with a high-precision aluminum cabinet frame, it seamlessly splices images and videos, delivering the perfect visual experience you desire.

• 300x168.75mm/150x337.5mm Size Modules

Our COB screens using high-quality, unique LED modules that support module temperature detection, voltage detection, dot-to-dot correction, and more.

• Frontal Service Design

Frontal service design for LED receiving cards, HUB cards, power supplies, and LED modules. The LED modules are assembled with magnetic features for front access.

• High Flatness

Our LED display offers seamless splicing, fast locking, and simple internal wiring for quick maintenance and seamless connections.
With no gaps, COB led screen provides 16K, 8K, 4K, and FHD seamless visual displays.

• Wide Viewing Angle

Viewing angle is up to 170° horizontal, providing a wide viewing angle to reach more target audience.

• Multiple Installation Way

Unique Aluminum Back Brackets

Self-positioning design,automatic leveling between structures,The whole screen will be ultra thin about 5cm after installation.

Advantages of COB LED Screen

COB LED display technology combines advanced design and packaging techniques, offering excellent performance in reliability, visuals, and durability. Below are the key benefits that make COB LED screens ideal for modern display solutions.

(1) Ultra-Fine Pixel Pitch

COB technology removes the limitations of traditional LED lamp diameters, enabling extremely fine pixel pitches. This allows screens to display sharper images, ideal for command centers, studios, or any close-viewing applications.

With no need for separate packaging of each LED, COB can pack more chips into a smaller area. This supports higher resolution and delivers smoother, clearer visuals.

(2) Simplified Manufacturing Process

COB reduces the need for brackets and simplifies production steps like soldering and encapsulation. This streamlines the assembly and reduces manufacturing errors.

By lowering the thermal resistance of chips, COB enables high-density packaging. This boosts brightness and ensures more efficient heat flow.

(3) Easier Installation

COB LED modules are designed for easy integration and seamless connection. This reduces installation time and effort, especially for large-scale projects.The COB led screen robust structure minimizes the chance of pixel damage during handling.

(4) Slim and Lightweight Design

Using ultra-thin PCB boards ranging from 0.4 to 1.2mm, COB displays are significantly thinner than traditional models. The overall weight can be reduced by up to two-thirds.

This light and compact design makes transport easier and reduces mounting structure costs. It also adds flexibility in creative installations.

(5) Strong Surface Durability

LED chips are embedded into recessed points on the PCB and sealed with epoxy resin. The result is a hard, smooth surface that resists impact and scratching.

This integrated design avoids traditional exposed lamp beads, reducing damage during transport or usage. COB led screen ensures a longer and more reliable product life.

(6) Wider Viewing Angle

COB LED screens offer viewing angles greater than 175 degrees, close to 180 degrees. This allows the content to be seen clearly from nearly any direction.In addition, COB displays create soft and uniform light diffusion. This improves the overall viewing experience without color distortion.

(7) Excellent Heat Dissipation

LED chips are in direct contact with the copper foil of the PCB, ensuring fast and efficient heat transfer. This prevents thermal buildup and protects internal components.The COB led screens use of high-spec copper layers and immersion gold technology enhances thermal performance. It helps maintain brightness and color uniformity over time.

(8) Energy Efficiency and High Contrast

Compared to traditional SMD displays, COB led screen consumes less power at the same brightness level. This makes it more energy-efficient for long-term use.

The tightly packed chips also reduce optical gaps and light leakage. This boosts image contrast and creates deeper blacks and richer colors.

(9) Easy to Clean Surface

With a sealed and smooth surface, COB displays are resistant to dust and moisture. There are no masks or open gaps where dirt can collect.Cleaning is simple—just wipe with water or a cloth.

(10) All-Weather Performance

COB screens are protected with multiple layers against water, moisture, dust, corrosion, and UV.The COB led screens operate reliably across a wide temperature range from -30°C to 80°C. This makes them suitable for both indoor and outdoor environments, year-round.
